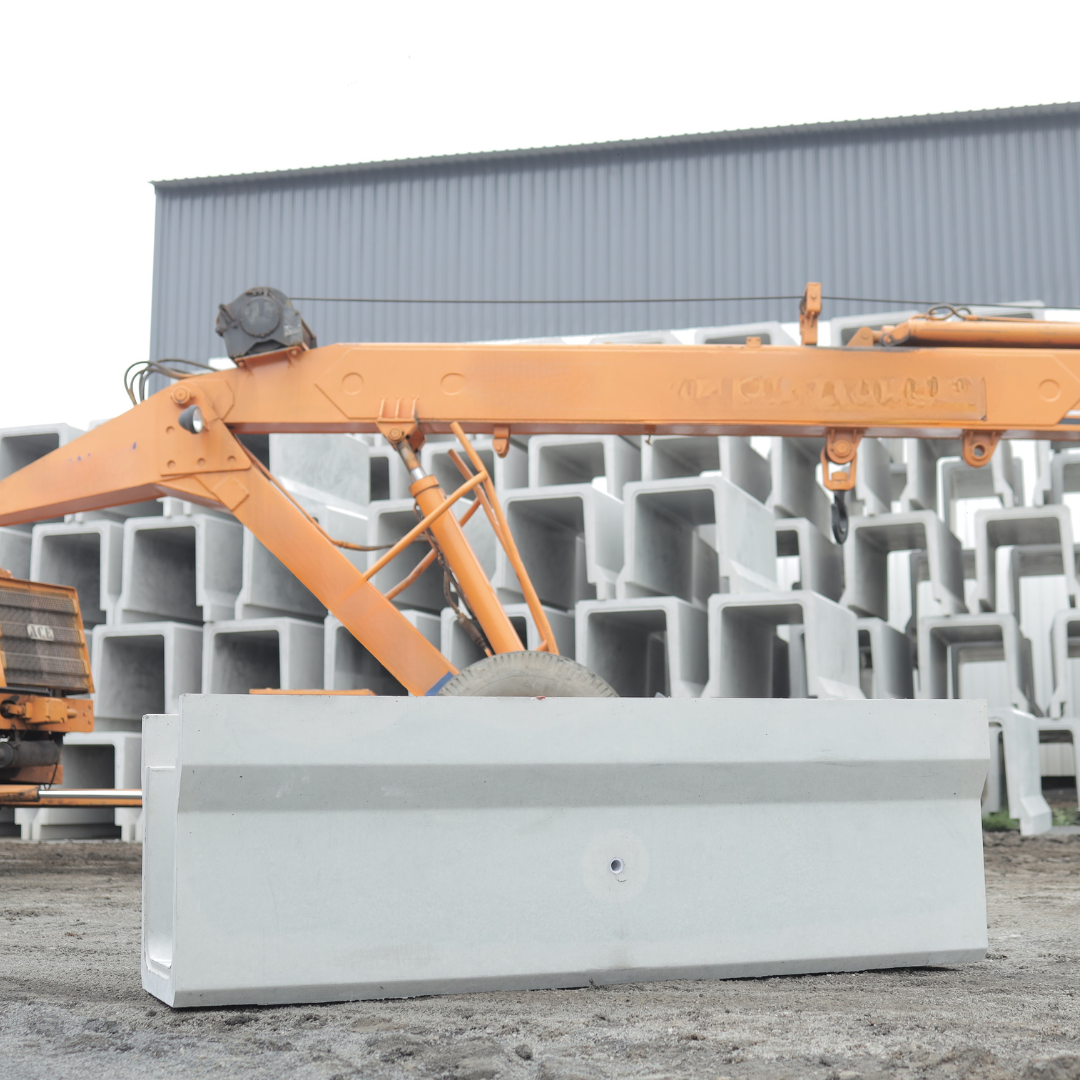

U Shape Drain (Heavy)

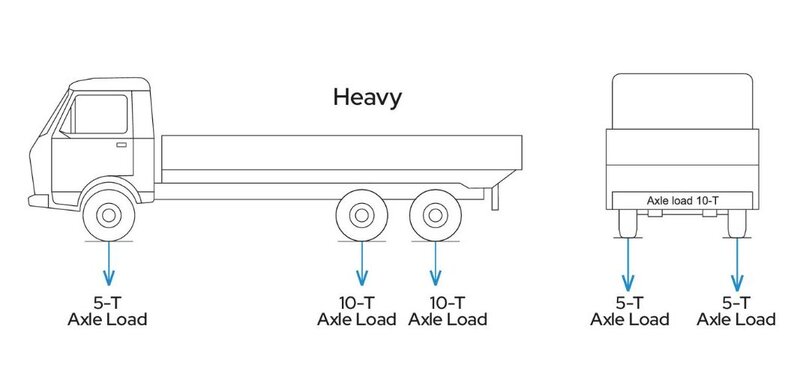

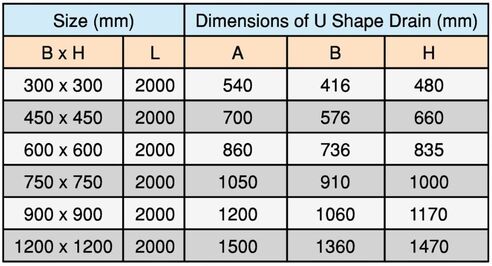

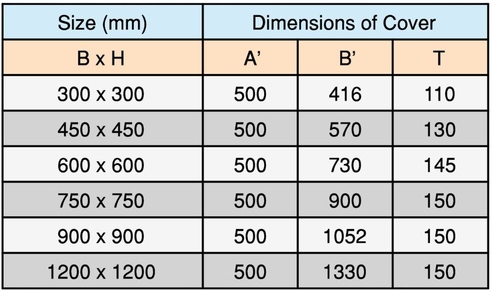

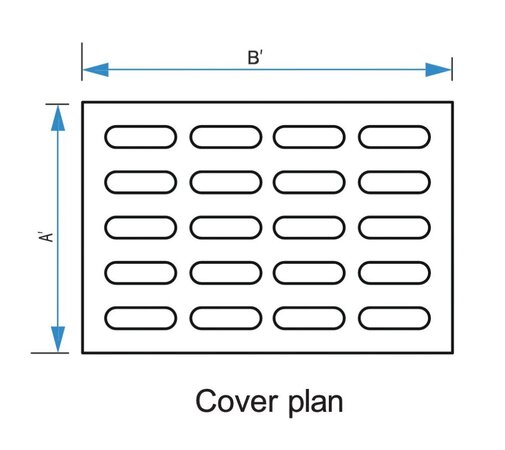

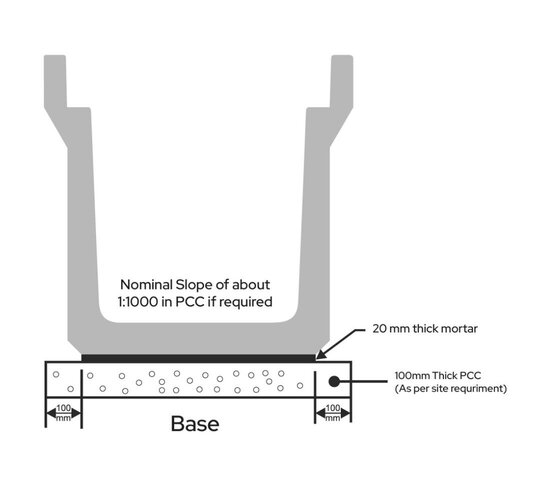

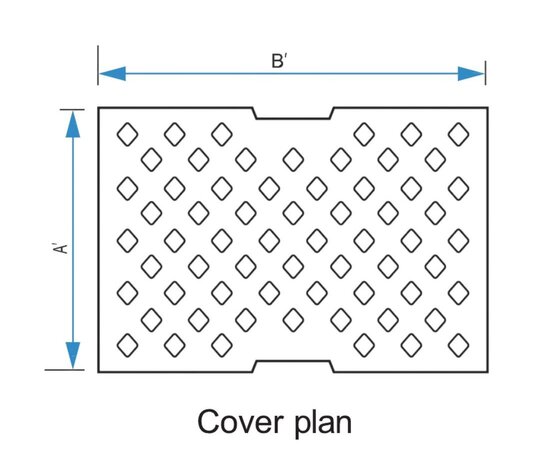

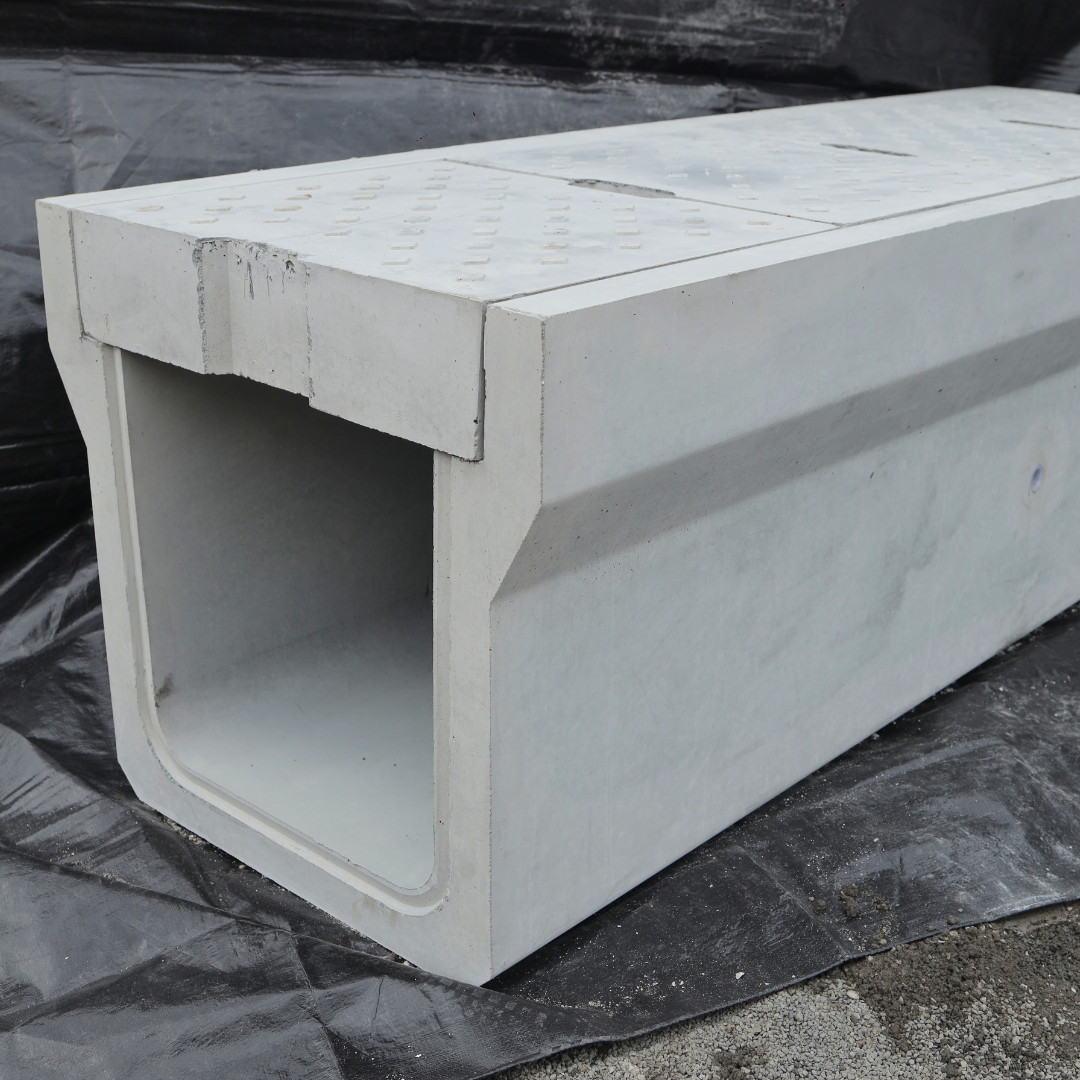

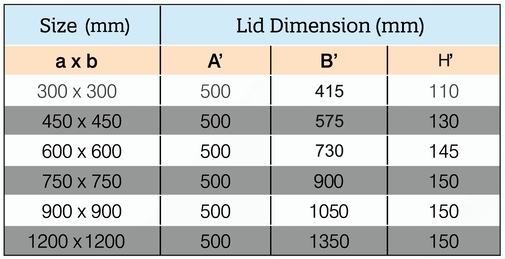

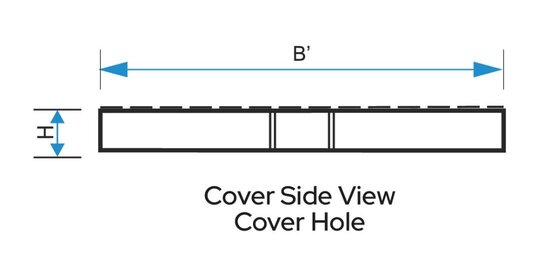

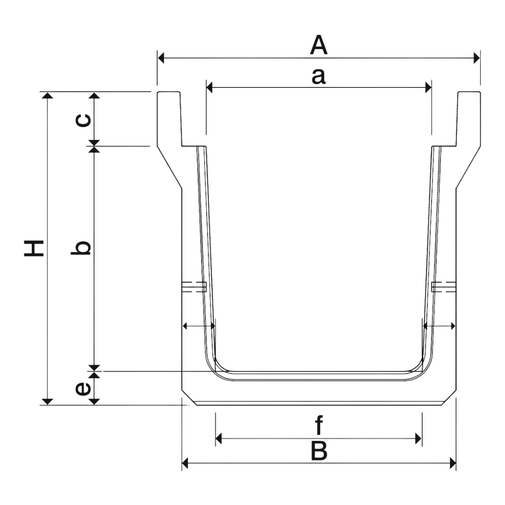

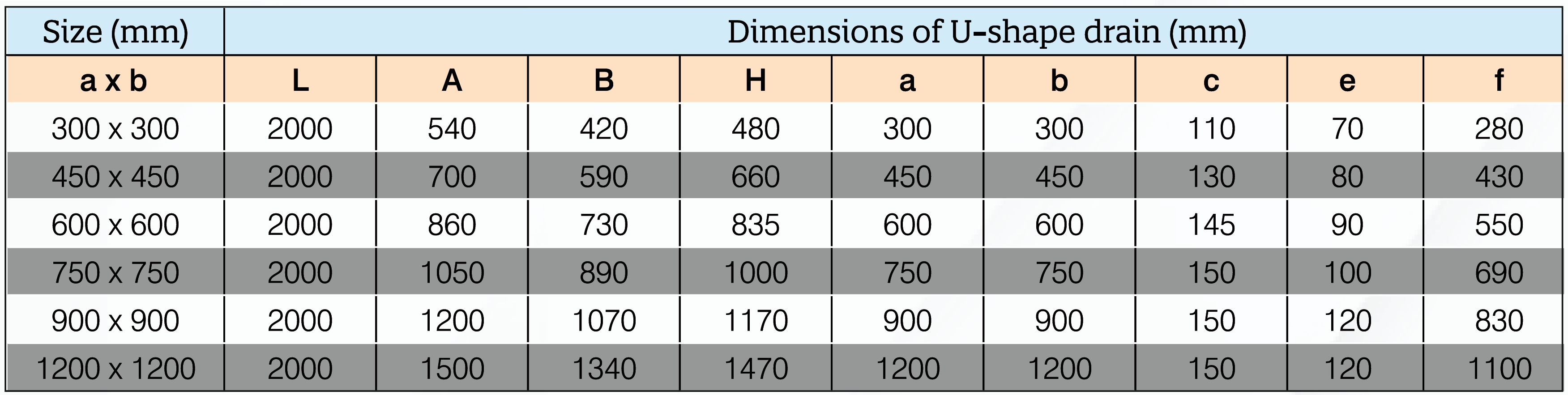

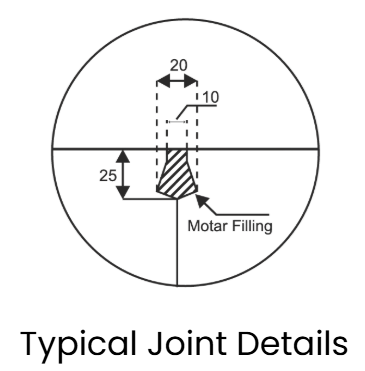

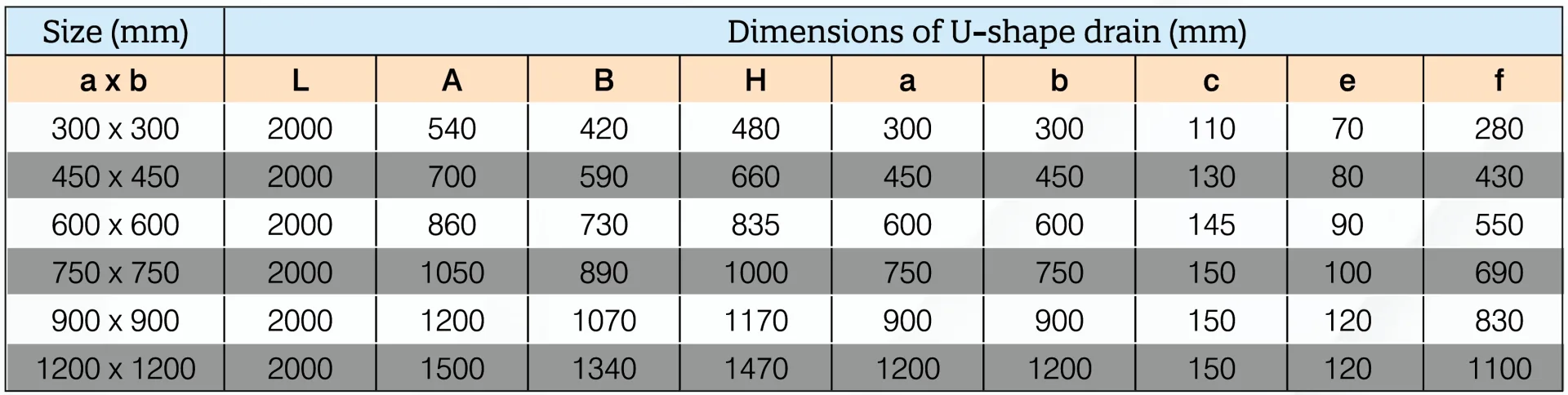

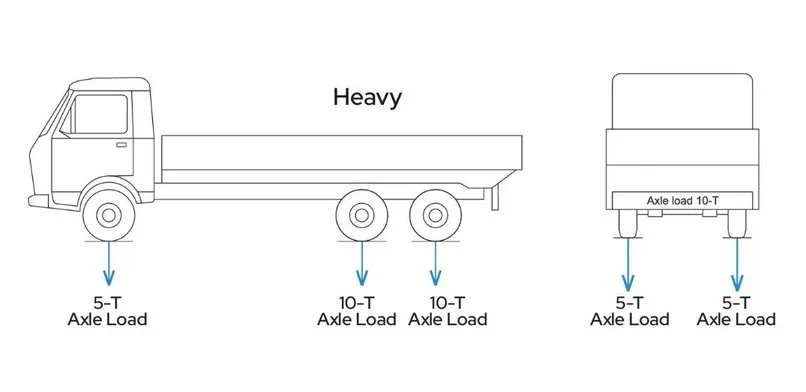

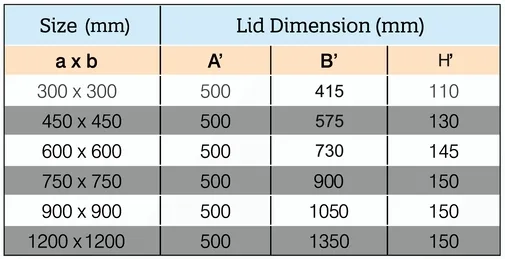

The Heavy U Shape Drain from Silicon Infratech is built to handle large volumes of surface water in demanding, heavy-load environments. Manufactured from M50-grade reinforced concrete in precision moulds, these open-top U-channel drains deliver long-term durability, structural strength, and minimal maintenance. Available in sizes from 300 × 300 mm up to 1200 × 1200 mm, they are engineered to carry heavy vehicular traffic with axle loads of up to 10 tonnes — making them ideal for highways, logistic parks, airports, and industrial complexes. Each drain is supplied with a precast RCC cover and seats on a simple levelling mortar bed for fast, accurate installation. The open-top design allows easy inspection and cleaning, while the robust section withstands continuous loading and harsh site conditions for a long, dependable service life.

• Made with M50 grade concrete
• High load-bearing capacity
• Suitable for extreme weather conditions
• Uniform dimensions for easy placement
• Open-top design for maintenance access
