Water Conveyance Systems
Ft - Flume
Open-channel flume for guiding water in agricultural and stormwater systems.

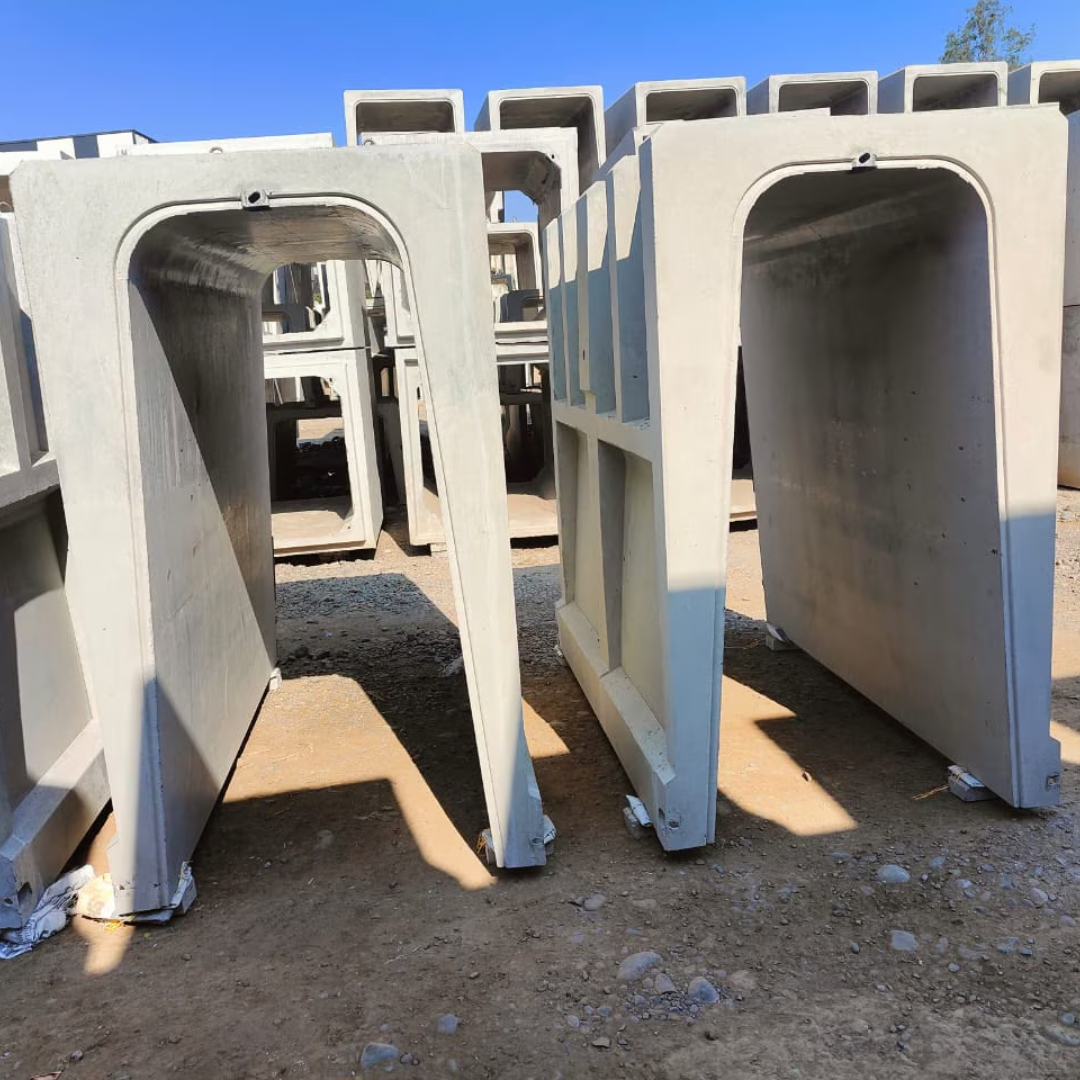

The Ft - Flume is a precast open-channel flume engineered to guide and control the flow of water across fields, canals, and infrastructure corridors. Its open-top, tapered profile delivers steady, directed water movement with minimal resistance and is available in heights from 900 mm to 1600 mm and widths from 600 mm to 2000 mm to suit a wide range of flow requirements. Each flume is cast in reinforced concrete to a design live load of 1 T/m² (10 kN/m²), giving it the strength to perform reliably alongside roads and field crossings. Laid on a crushed-stone foundation with levelling concrete, the sections install quickly and integrate easily into existing layouts — making the Ft - Flume an ideal choice for agricultural irrigation, stormwater diversion, and open-field surface water control with a long service life and minimal maintenance.

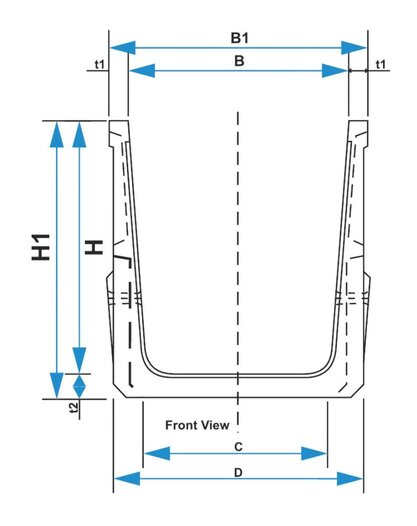

Specifications
| Product Type | Precast Open-Channel Flume |
|---|---|
| Material | Reinforced Precast Concrete |

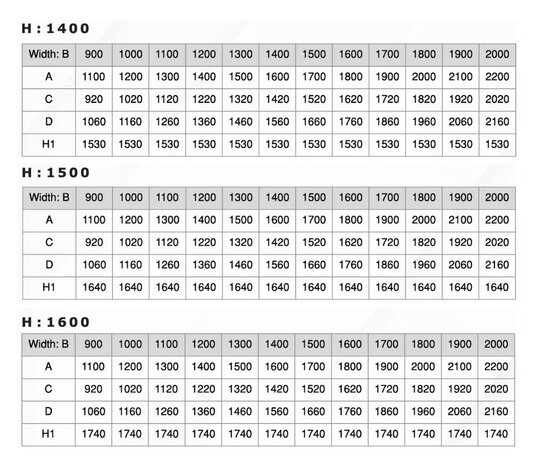

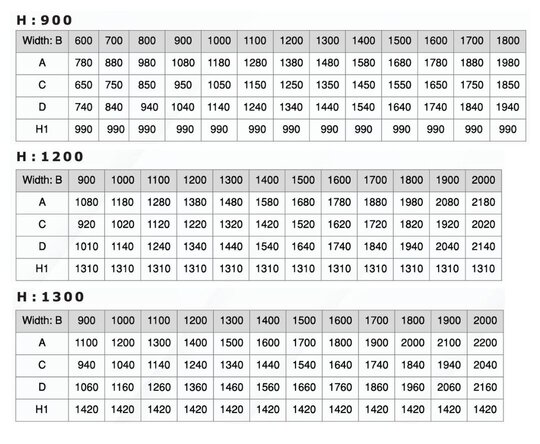

| Available Height | 900 mm – 1600 mm |
| Available Width | 600 mm – 2000 mm |
| Design Live Load | 1 T/m² (10 kN/m²) |
| Channel Profile | Open-top, tapered section |

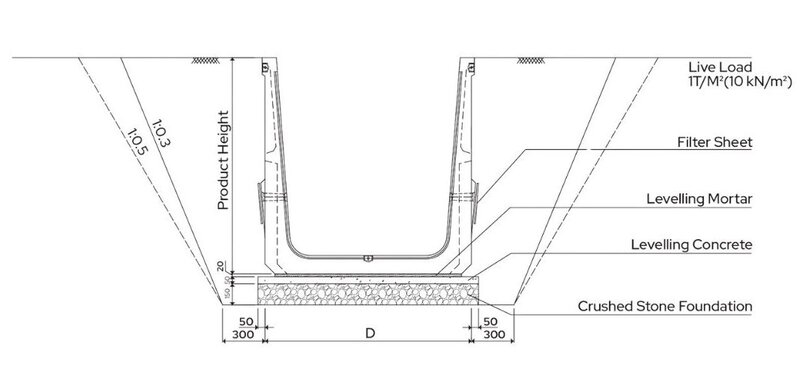

| Installation | Crushed-stone foundation with levelling concrete |
| Applications | Agricultural irrigation, stormwater diversion, surface water control |
