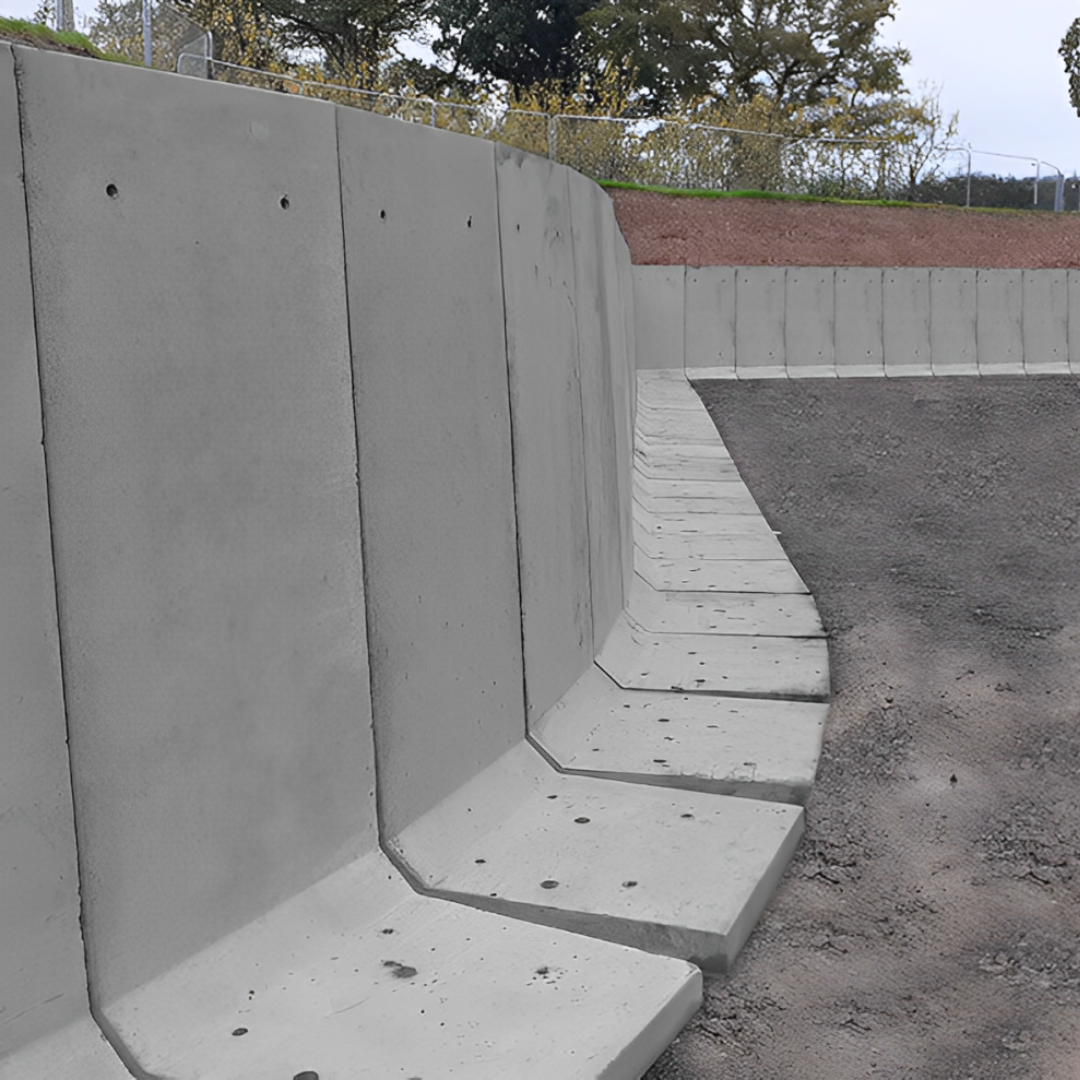

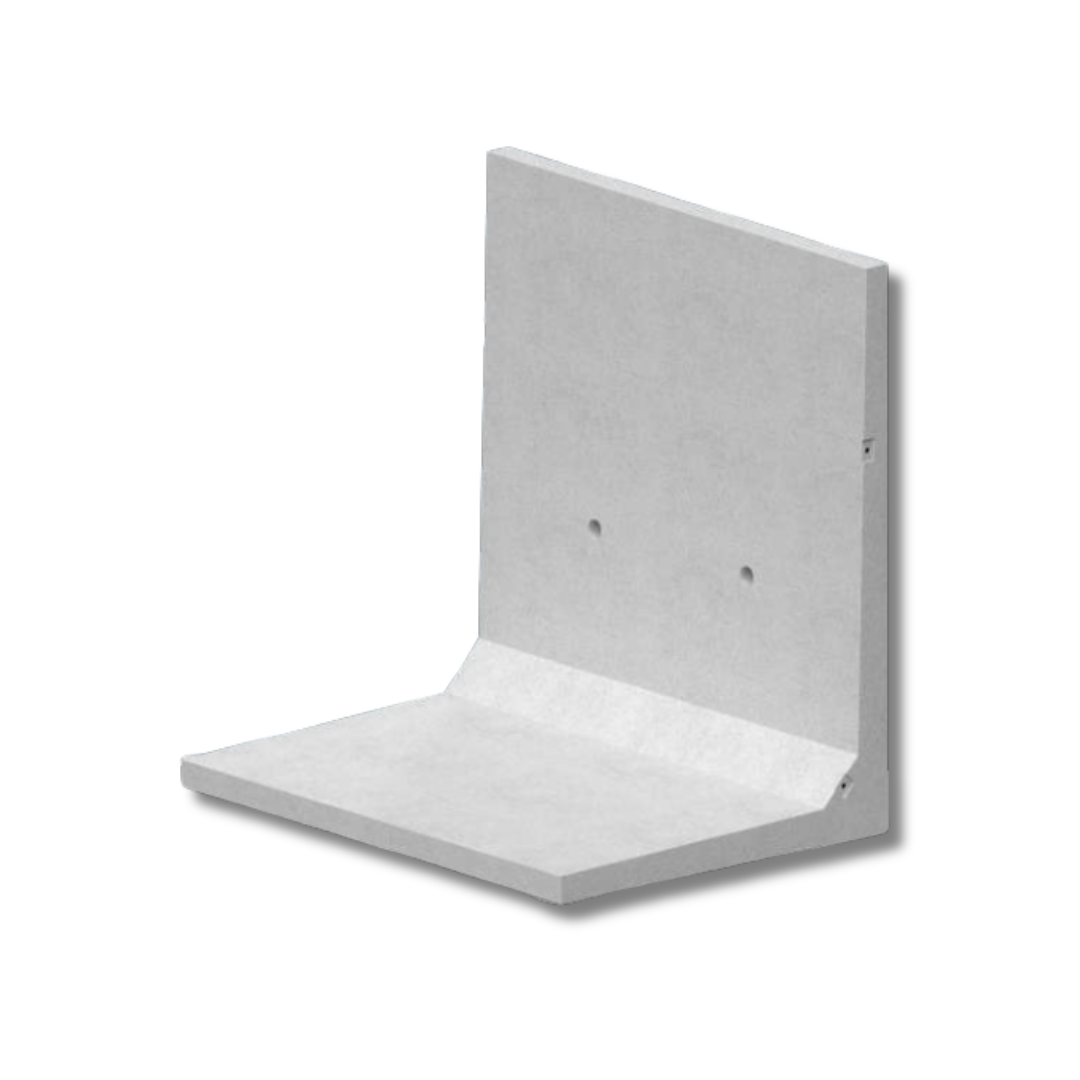

Earth Retaining Wall
Precast wall system for soil retention and slope stabilization.

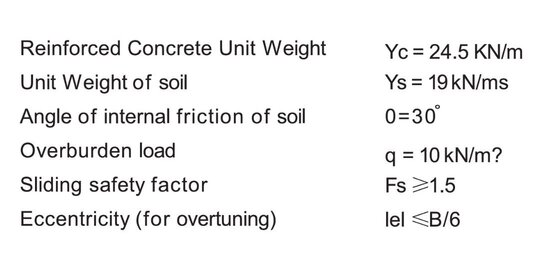

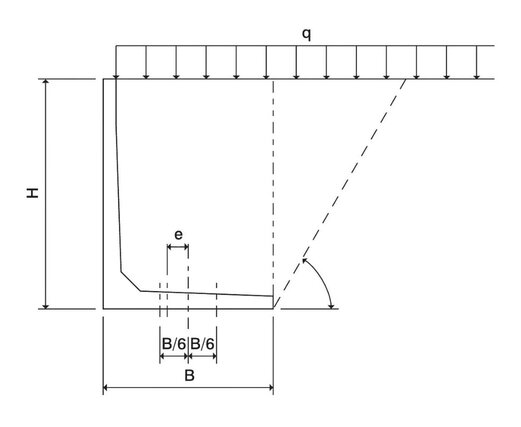

The Earth Retaining Wall is a precast L-shaped reinforced concrete system used for soil retention, slope stabilization, and erosion control. Each panel is cast to precise dimensions in a controlled factory environment and is available in heights from 600 mm to 3000 mm with a standard panel length of 2000 mm, allowing walls to be built quickly and to a consistent finish. The structure is engineered for stability with a sliding safety factor of 1.5 or greater, designed against a soil internal-friction angle of 30° and an overburden load of 10 kN/m². Precast construction removes the need for extensive site formwork and curing, speeding up project timelines. The Earth Retaining Wall is well suited to embankments, road and rail formations, landscaping, and any site where reliable, long-lasting soil retention is required.

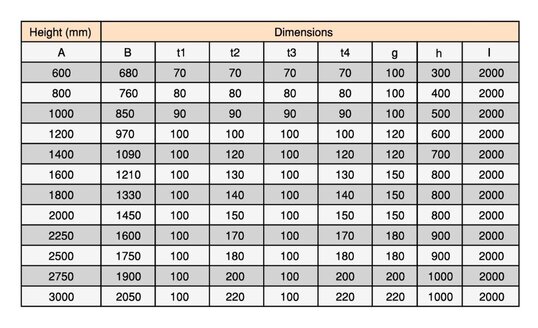

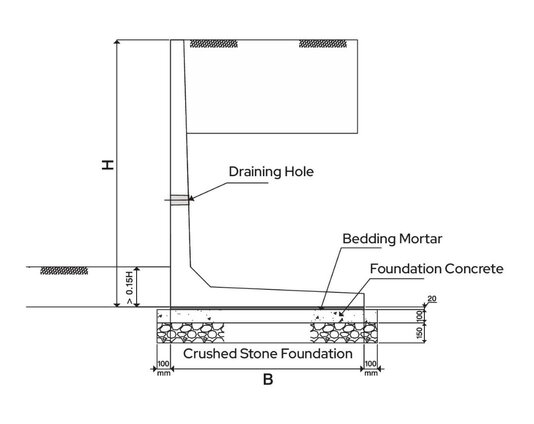

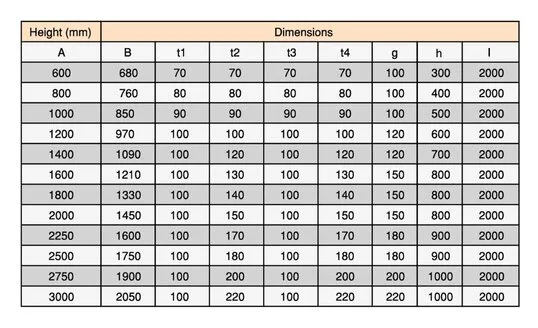

Specifications
| Product Type | Precast L-Shaped Retaining Wall |
|---|---|
| Material | Reinforced Precast Concrete |
| Available Height | 600 mm – 3000 mm |
| Standard Panel Length | 2000 mm |
| Design Soil Friction Angle | 30° |
| Design Overburden Load | 10 kN/m² |
| Sliding Safety Factor | ≥ 1.5 |
| Applications | Slope stabilization, soil retention, embankments |
